Australia Bi-Modal Exhaust Updates

[Salman]

Gents - I mentioned a document which outlined the operation modes. The dealer mentioned he'd send it to me. However, I opened the glove box yesterday and found they'd left it in the car. See attached. Might need to redo my video as valve is only open in Drive whilst in Eco!

Could you please send all the pages of the document, it seems that there are 14 pages. And I would like to know more about the Bi-Model Exhaust.



[Salman]

Wouldn’t it be easier to purchase one in Bahrain?

Yes ! it would be much easier. But I've already purchased the car from my local dealer.



[Simon]

Anyone interested in a locally designed and made twin 3” secondary cat back system call Sam 0408 207 665. He is located in Sydney
Top notch system and Great service



[THT]

agree

I actually didn’t realise the original was blacked out but I tend to agree. In this case it helped find the issue. Since then it has seemed to open up and work fine. I’ll be keeping an eye on it though.

hey mate, does the flap close in eco? i tried switch to eco while parking but it still open, all mode open...



[Salman]

hey mate, does the flap close in eco? i tried switch to eco while parking but it still open, all mode open...

Once the car is in (P)park or (N)natural the flap will be open in all modes.

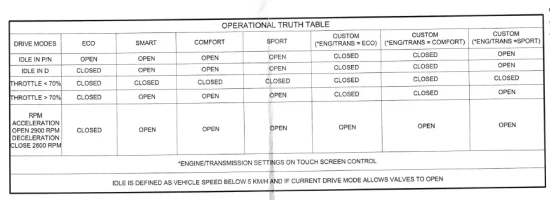

Please check the attached operation table for more understanding.



[THT]

View attachment 8278

Once the car is in (P)park or (N)natural the flap will be open in all modes.

Please check the attached operation table for more understanding.

cheers, ill save that, thanks you.



[THT]

possible to keep the bimodal and swap out stock resonator and piping for increase sound(or hp)? does that work?



[Jonathan Lasich]

Anybody know the weight and dimensions of the box the exhaust comes in? I'm exploring the possibility of buying one from an Aussie dealer and having it shipped to Canada for installation in my car, but I need the weight and dimensions to estimate and arrange shipping. I've contacted a dealership in Australia and asked them, but no response so far, a week later.



[Jonathan Lasich]

Could you please send all the pages of the document, it seems that there are 14 pages. And I would like to know more about the Bi-Model Exhaust.

Gents - I mentioned a document which outlined the operation modes. The dealer mentioned he'd send it to me. However, I opened the glove box yesterday and found they'd left it in the car. See attached. Might need to redo my video as valve is only open in Drive whilst in Eco!

If you don't mind, I would also like to see all 14 pages of the document. I'd like to give it to the local Kia dealer and get an installation cost estimate.



[robz32]

Anyone interested in a locally designed and made twin 3” secondary cat back system call Sam 0408 207 665. He is located in Sydney
Top notch system and Great service

Wow!! 3" that is a first....any sound clips/videos of it? Does look like quality work.



[Simon]

Doesn’t do it justice but I can once I work out how to make file small enough. This system was fitted to Kia Australia car also



[robz32]

No need to make the file small. Just upload it to youtube or any other video hosting site.



[Simon]



[robz32]

Sounds pretty good. I heard some drone, is that correct? The video was not long enough to tell.
Did you take any videos from the outside?



[Simon]

Sorry no videos from outside. System is drone free. Sam spent a lot of time testing on Kia Australia car to get it right.



[sticks]

(PPKIA03.0 KIA Stinger GT - 2018 ) check this out can be controlled by an app plus an x force bi modal exhaust controlled by an app which is only a month away.62kw at the back wheels with exhaust an extra 22kw a total of 84kw.



[Marco-Oz]

hey mate, does the flap close in eco? i tried switch to eco while parking but it still open, all mode open...

Yes THT, it stays closed whilst in Drive but opens in park or neutral.



[Stinger GT SS]

Anyone interested in a locally designed and made twin 3” secondary cat back system call Sam 0408 207 665. He is located in Sydney
Top notch system and Great service

Looks good, did you get any power gain?
Also could you please add you general location to your profile.



[Simon]

Looks good, did you get any power gain?
Also could you please add you general location to your profile.

Have not gone on Dyno but has a lot more throttle response and def more power. Going off others who have be around 10kw at the wheels
Melbourne south eastern suburbs



[Stinger GT SS]

Have not gone on Dyno but has a lot more throttle response and def more power. Going off others who have be around 10kw at the wheels
Melbourne south eastern suburbs

Thanks, would have been interesting to do stock dyno, then dyno after fit out to see difference.
